This xcmg xcs4531e heavy duty reachstackers for sale can operate stably under extreme loads with its powerful high load capacity and precise hydraulic system. Whether it is stacking difficult containers, carrying heavy goods, or performing tasks in complex working environments, the XCS4531E can ensure the safety of the equipment and smooth operation. The hydraulic system has been precisely adjusted so that the vehicle can be lifted and operated smoothly under any workload, avoiding the risk of tilting or overturning caused by load deviation.
This xcmg xcs4531e heavy duty reachstackers for sale adopts a new power system, which not only improves the overall power performance, but also focuses on energy saving and consumption reduction. By optimizing the coordinated work of the engine and transmission system, it greatly improves fuel utilization, thereby effectively reducing operating costs. It can always maintain low fuel consumption under high load and long-term operation, reducing daily maintenance and fuel costs. In addition, the high efficiency and stability of the power system also make the equipment more stable during operation and extend the service life of the equipment.
This xcmg xcs4531e heavy duty reachstackers for sale adopts high-strength materials and advanced structural design to ensure that the equipment can operate stably for a long time in complex working environments. The body structure has been precisely designed and uses durable and corrosion-resistant materials, enabling the equipment to maintain excellent durability and pressure resistance under high-intensity and high-frequency operating conditions such as ports and warehousing. This equipment is also equipped with multiple safety systems to ensure that the equipment can maintain efficient and safe operation under any circumstances.

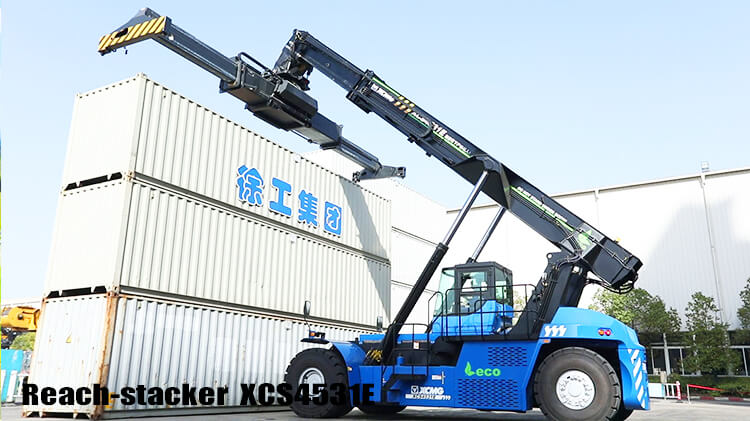

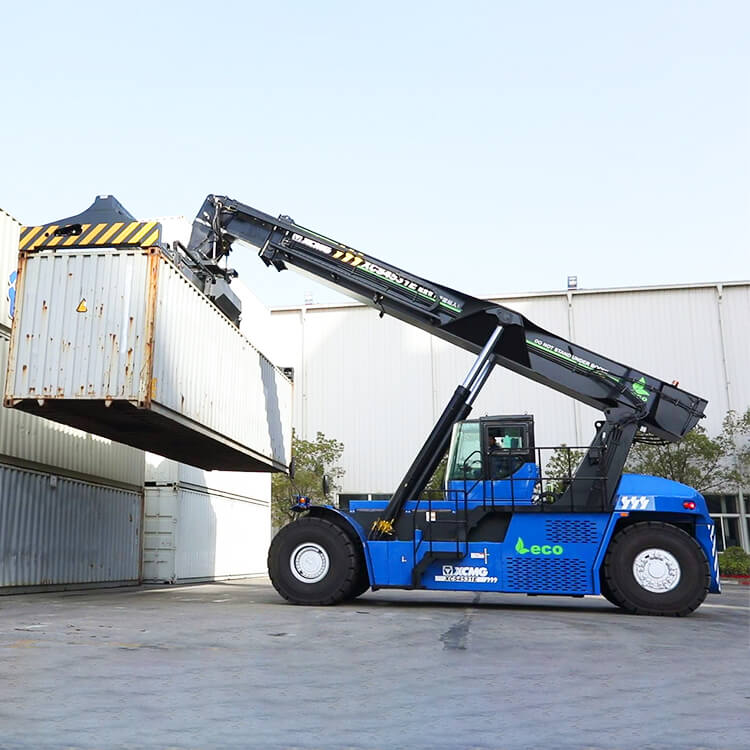

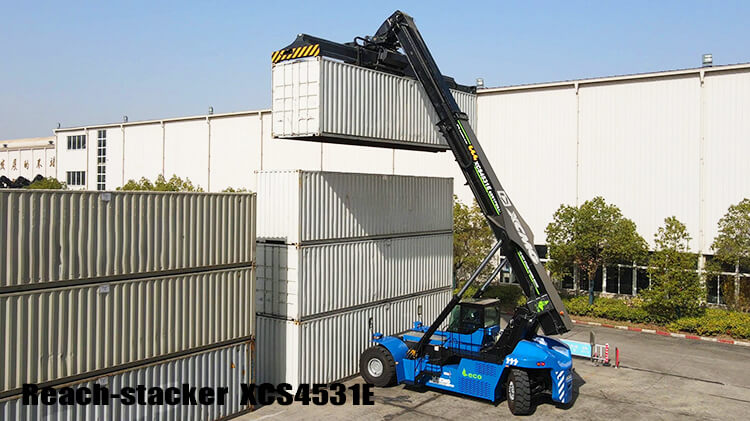

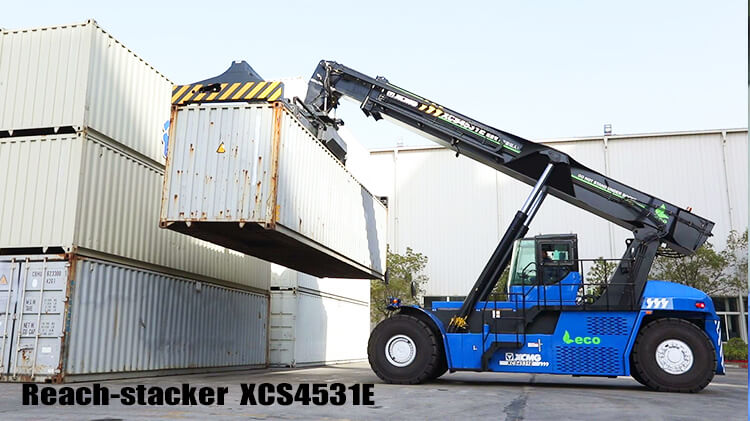

XCMG Xcs4531e Heavy Duty Reachstackers for Sale
XCMG Xcs4531e Heavy Duty Reachstackers for Sale
XCMG Xcs4531e Heavy Duty Reachstackers for Sale
Item: XCS4531E
Main motor:
Model: DM380H46
Rated power/speed: 210/942 kW/rpm
Maximum torque/speed: 3800/275 Nm/rpm
emission standards: zero emission
Working motor:
Model: UM130H37
Rated power/speed: 160/2037 kW/rpm
Maximum torque/speed: 1300/1175 Nm/rpm
emission standards: zero emission
battery:
Types: Lithium iron phosphate
capacity: 423 kWh
Drive axle: Kessler-D102
Boom:
Maximum lifting height: 15100 mm
inclination: 0-60
Maximum lifting speed (no load/full load): 420/250 mm/s
Maximum descending speed (no load/full load): 400/360 mm/s
Maximum travel speed (no load/full load): 20/14km/h
Gradeability (no load/full load): 20/13 %
Hydraulic system working pressure: 260 Bar
Vehicle quality: 72t
Rated load: 45t

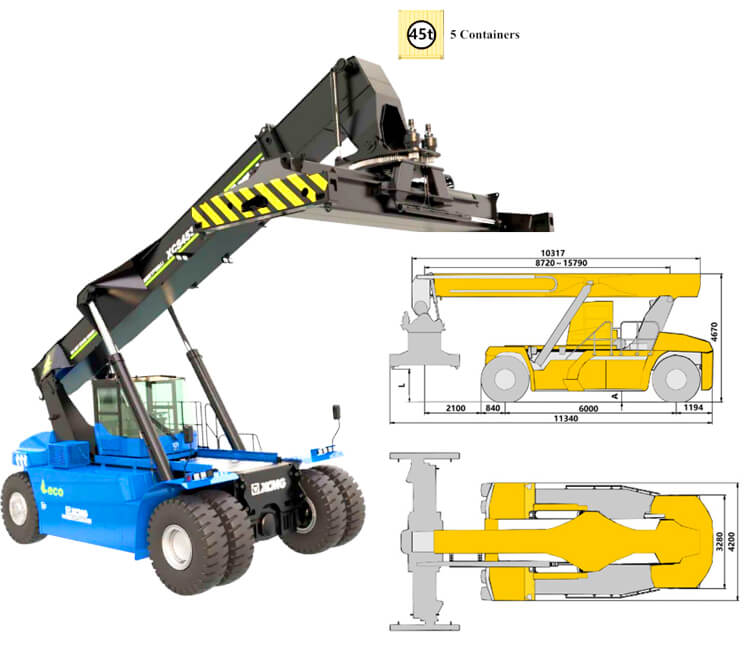

Overall dimension(L*W*H): 11340*4670*6053mm
Wheelbase L1: 6000mm
Minimum ground clearance H1: 300mm
1. Versatility: This xcmg xcs4531e heavy duty reachstackers for sale can meet various operating requirements under different working conditions with its excellent versatility. Whether it is container stacking at the port, cargo handling in the warehouse, or loading and unloading of heavy items, it can easily cope with it. It can easily operate in narrow spaces, and its strong load capacity ensures that it can efficiently handle large tonnage of cargo.
2. Advanced hydraulic technology: This xcmg xcs4531e heavy duty reachstackers for sale uses an advanced hydraulic system, which not only responds quickly during operation, but also provides extremely high stability under high load. The hydraulic system ensures that the equipment can be precisely controlled in various complex operations, whether it is lifting, steering or moving forward and backward, it remains smooth and efficient. The hydraulic system of this equipment has a strong power output and can cope with the most demanding working environment.
3. Strong environmental adaptability: This xcmg xcs4531e heavy duty reachstackers for sale has excellent environmental adaptability. Whether in the hot summer high temperature environment or the cold winter low temperature conditions, the equipment can still work efficiently and stably. It is equipped with a specially designed anti-rust and anti-corrosion coating and sealing system, which can effectively resist the impact of harsh climates. In addition, the materials and technologies of the body and hydraulic system have been carefully selected to ensure that it can still maintain efficient operation in harsh environments.
4. Easy maintenance: The layout of each component of this xcmg xcs4531e heavy duty reachstackers for sale body has been carefully optimized to facilitate routine inspection, maintenance and replacement. The maintenance points of key components such as the hydraulic system, engine, chassis, etc. are designed to be very easy to access, greatly reducing maintenance time. The simplified maintenance process not only reduces operating costs, but also greatly extends the service life of the equipment.
5. Intelligent system: This xcmg xcs4531e heavy duty reachstackers for sale is equipped with an advanced intelligent monitoring system, which can monitor the working status, fuel consumption, operation data, fault diagnosis and other information of the equipment in real time. The real-time data of the equipment can be easily viewed through the intelligent interface, so as to adjust the operation strategy in time, optimize the operation efficiency, provide an important basis for the maintenance and management of the equipment, and improve the convenience of operation.
